Product Overview

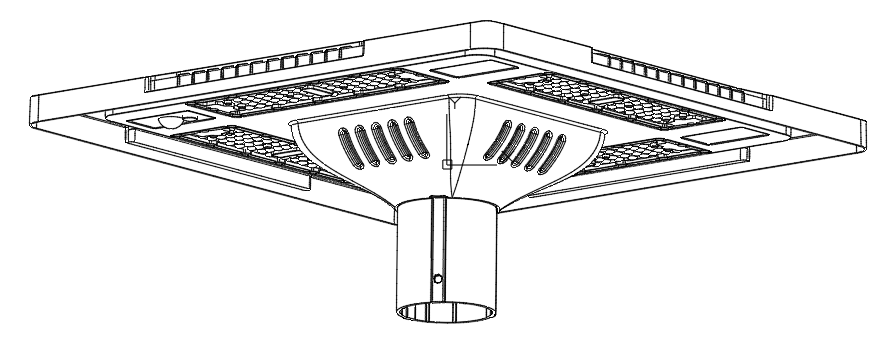

The product integrates photovoltaic panels and light sources together, and has built-in large-capacity lithium iron phosphate batteries to provide customers with high-quality integrated lighting services. The whole lamp adopts high-lumen 3030 lamp beads, supporting high-quality polycarbonate light distribution devices, and the light transmittance can reach 93%. Product no wiring, easy to install and use.

List of accessories:

1. Lamp holder    1

2. Sleeve    1

3. product manual     1

4. Certificate of qualification    1

5. package of screws    1

6. Product outer box    1

Mounting And Fixing

1. Open the package and take out the lamps and related accessories. Press the ON button of the lamp (at least 2s) (or press the ON button of the remote control), the lamp opens, and then 1s closes, indicating that the light control function of the system is normal. Through the remote control, press the relevant function button, the lamp flashes and closes, indicating that the remote control function is normal and can be installed normally.

2. Fix the sleeve on the main housing through 4 accessory screws 5*14.

3.through 6 hex screws 8*16 to fix the lamp head on the supporting light pole, installation environment to ensure that the photovoltaic panel is not blocked by buildings, trees, etc.
