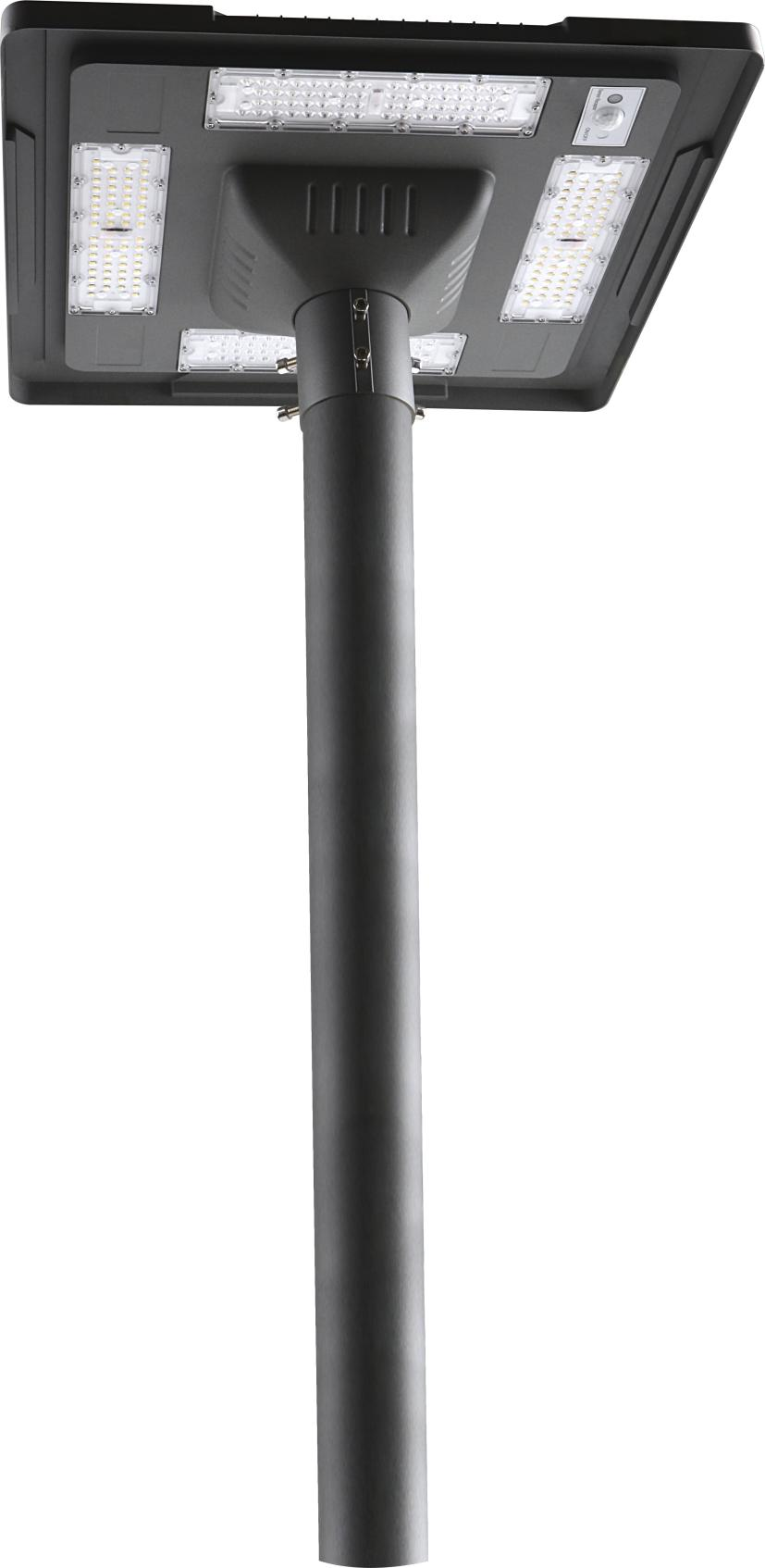

Product picture

---

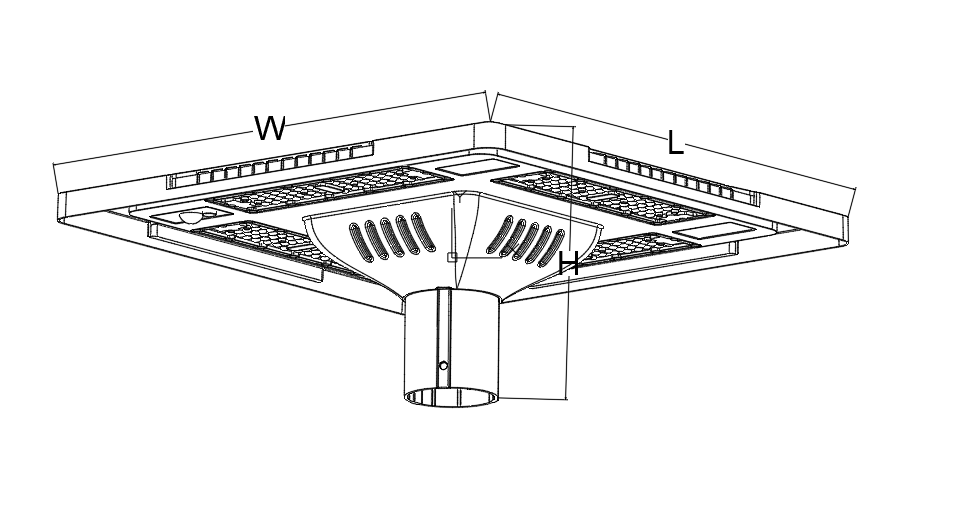

Product size

Product Type	Size（mm）
	Lamp			PhotovoltaicPanel
	L	W	H	L	W	H
BW-JFX-100	515	515	180	450	450	3

2.Product Parameter

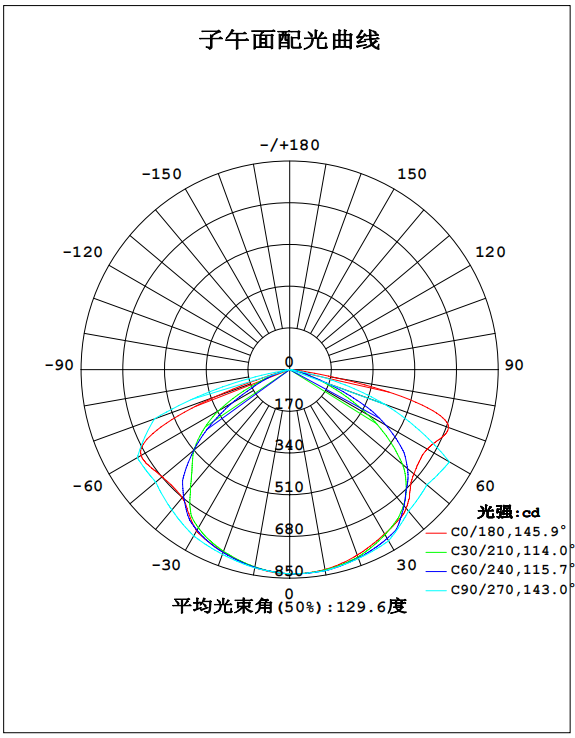

3.Light distribution curve

4.photoelectric Test

Open the package and take out the lamps and related accessories. Press the ON button of the lamp (at least 2s) (or press the ON button of the remote control), the lamp opens, and then 1s closes, indicating that the light control function of the system is normal.

Through the remote control, press the relevant function button, the lamp flashes and closes, indicating that the remote control function is normal.

5.Product superiority

5.1 Structural innovation

The whole machine is sprayed with mixed gray sand pigment, exquisite texture;

The four luminous surfaces all adopt wide-angle design, so that the beam Angle of the whole lamp is larger and the effective irradiation area is wider;

Internal battery using ABS flame retardant material PACK, safe and reliable;

5.2 Parameter Upgrading

The light distribution device uses polycarbonate as the raw material, and the light transmittance is more than 93%.

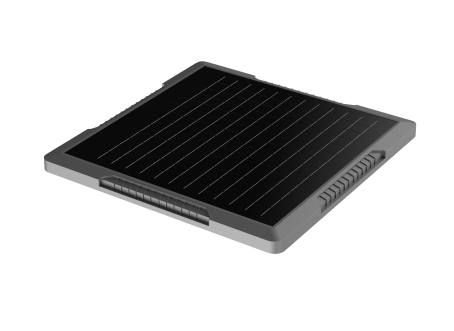

Using 5V single crystal photovoltaic panel, the conversion efficiency can reach 22%;

PMOS circuit scheme makes the system charge faster, more stable, more full;

The graded power protection scheme enables the product to avoid deep circulation and increase service life;

6.Light mode

* All modes have memory, after the lamp is re-lit, run the light in the mode before the light is off

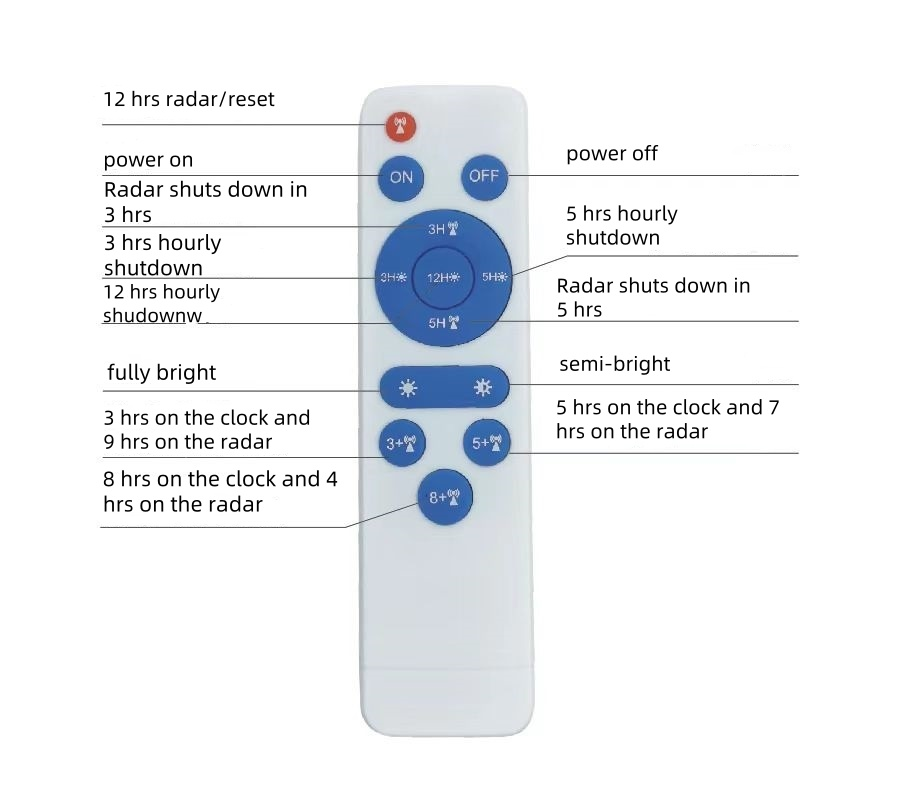

7.Remote control diagram description

8. Maintenance

l In order to ensure that the solar panel in use can effectively receive light, please regularly clean the surface dirt of the solar panel with soft cloth and water .The use of strongly soluble chemicals and abrasives such as ammonia and benzene is prohibited.

l The battery will be affected by self-discharge, and the maximum storage time is recommended for 3 months. After a long period of transportation or storage, It is necessary to check in time, charge regularly and record, otherwise it will affect the capacity and service life of the battery.

l When installed, the solar panel faces the sun as far as possible, so that it can effectively absorb the sun's light energy.No tall buildings or trees should block the sun near the installation of lamps, and places with serious dust should be cleaned up in time.

l All screws should be tightened evenly according to the standard, without loosening and shaking.

9.Matters need attention

l Solar panels are fragile products, do not scratch or collide when installing, surface scratches, dust, occluded objects will affect the efficiency of solar panels;

l Install solar lamps, such as solar panels facing south in the northernhemisphere and north in the southern hemisphere;

l The lamp must be charged every 3 months whenit is idle;It must be checked and recorded in time if along-term transportation or storage is required,otherwise the battery life may be affected. Charging method: Turn on the lamp switch, face the solar panel towards the sun, charge it continuously for 1-2 days in the case of full sunshine.

l Lamps should be installed away from WIFI, omnidirectional antennas for mobile communication, small base stations for telecommunications, and TV antennas; Too close to the signal source may disable the remote control function;

l The lamp should not be installed on the vibrating surface, the shaking of the lamp may cause the sensor to trigger by mistake;

l The remote control function of the lamp may be affected by vibrating objects in its sensing area;

l The infrared sensor and the detection object between the glass blocking through the far infrared material; When the heat source within the detection range is hardly moving or moving at high speed, there may be no trigger;

l Open the switch of the lamp before use to test whether it is normal; Before installation, it is necessary to test whether the lamp is normally charged and discharged (the solar panel will charge in the sun, and the lamp will be off; Solar panels block the sun will not charge, light up);

l Do not put the lamp in water or fire, there may be a risk of explosion;

l The person who maintains the lamp must be a professional, non-professionals do not remove the lamps, the battery needs to be taken out by professionals after the expiration of use.

l The light source in this lamp shall be replaced by the manufacturer or its service agent or a similarly qualified person;

l The product contains lithium batteries, which are regarded as inflammable and explosive items. Please comply with the air  transport regulations. Do not fall violently during transportation. Storage should be separated from other items to avoid damage;

l In practical application, the battery power will be fully discharged on continuous rainy days and it is greater than the design value;Therefore the working time is too short which is a normal phenomenon because of the low efficiency ,but the lamp will return to normal work when the weather clears up;

l Product specifications are subject to change without prior notice, the final interpretation belongs to the manufacturer.

10.Attachment list

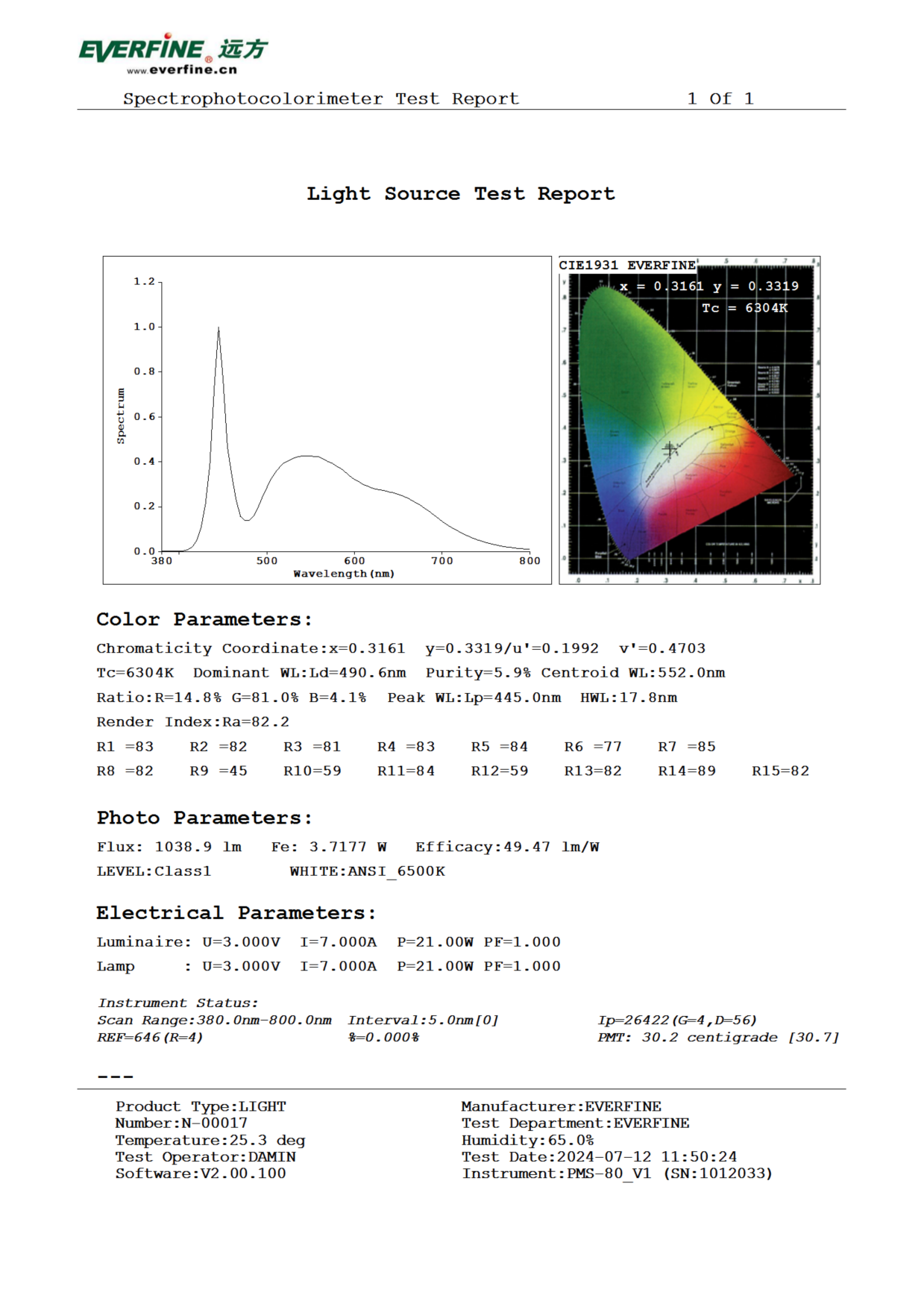

10.1Electric light source test report(Data is measured at 3.2V battery voltage)
